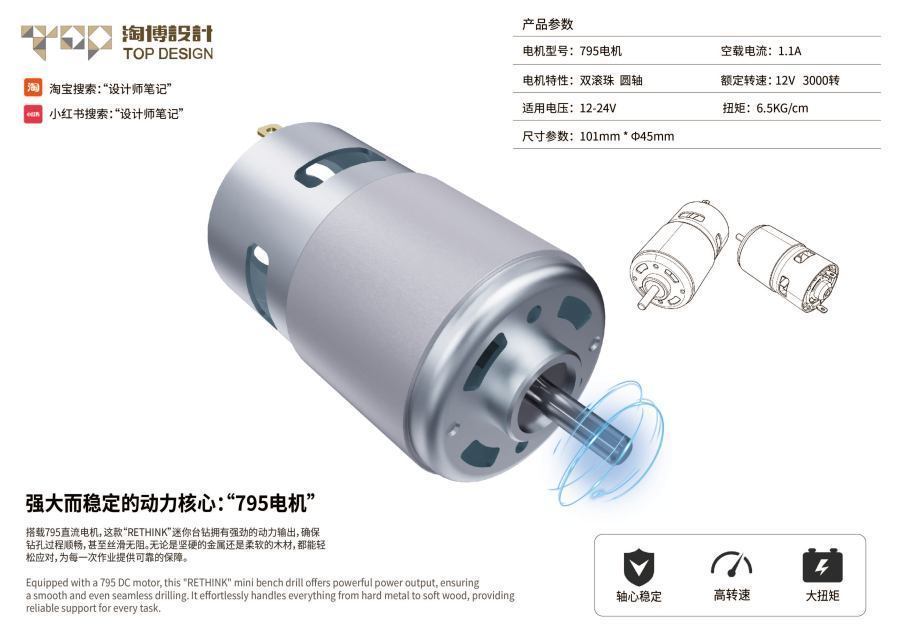

一、强大而稳定的动力核心A powerful and stable power core

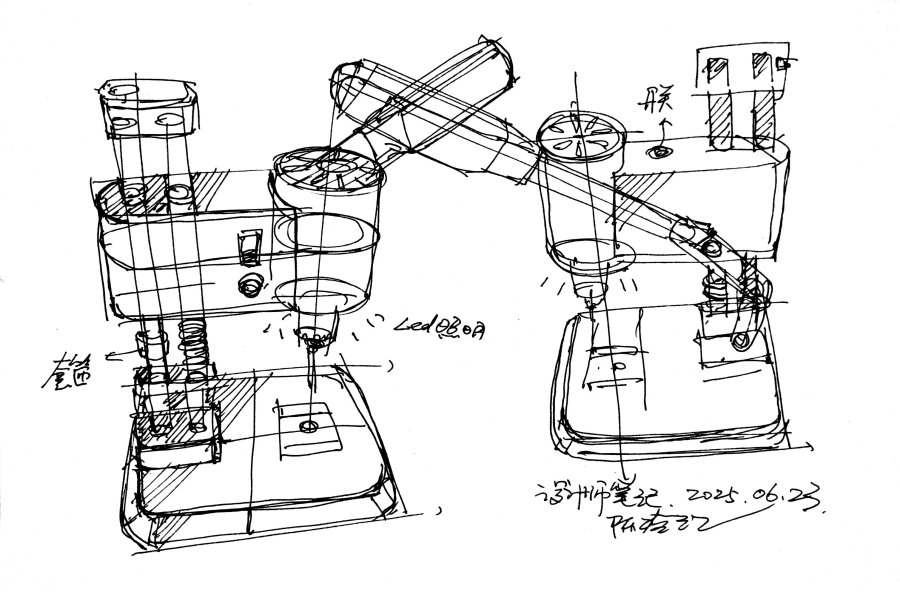

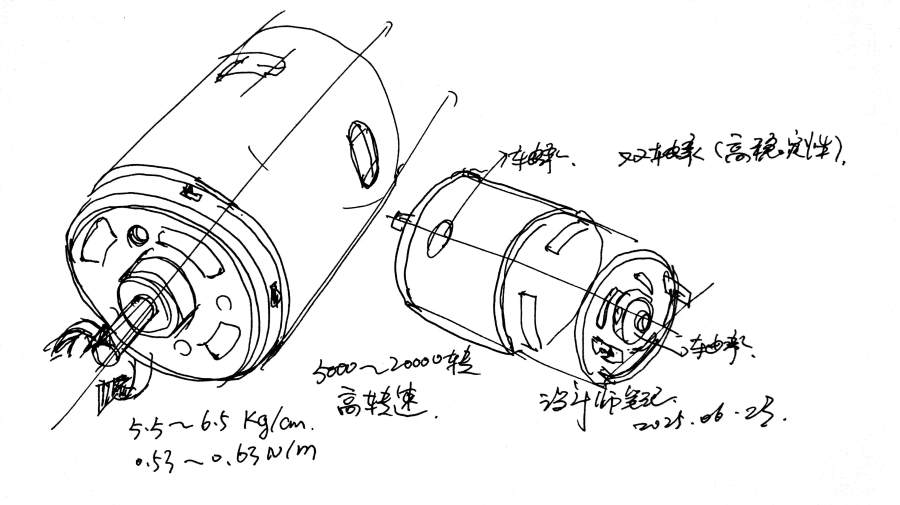

搭载795直流电机，这款“RETHINK”迷你台钻拥有强劲的动力输出，确保钻孔过程顺畅，甚至丝滑无阻。直流电机的高效性能，让各种小规格钻头能够以稳定的转速高速持续旋转，无论是坚硬的金属还是柔软的木材，都能轻松应对，为每一次作业提供可靠的保障。

        Equipped with a 795 DC motor, this “RETHINK” mini drill press boasts a powerful output, ensuring a smooth, even effortless drilling process. The high-efficiency performance of the DC motor allows various small-sized drill bits to rotate at a stable high speed continuously, easily handling both hard me-tals and soft woods, providing reliable support for every operation.

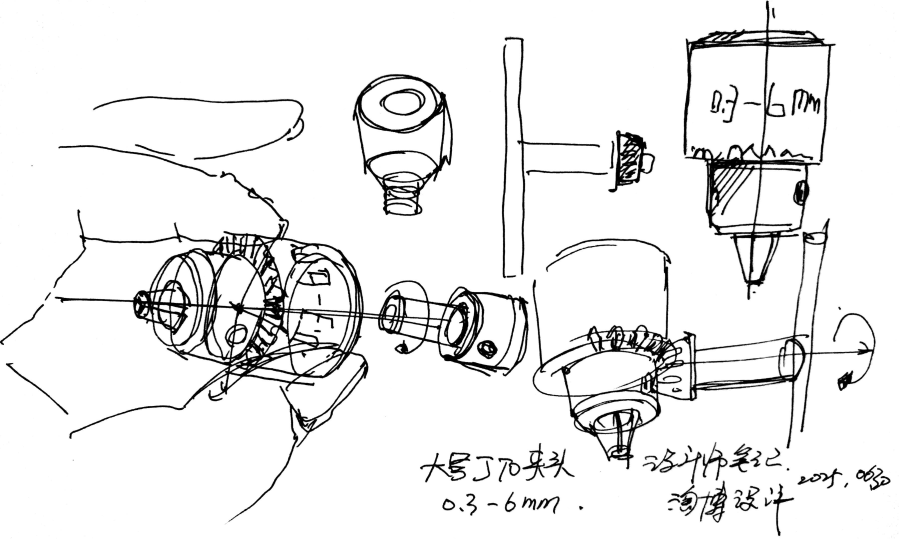

二、精准的JTO夹头设计The precise JTO chuck design

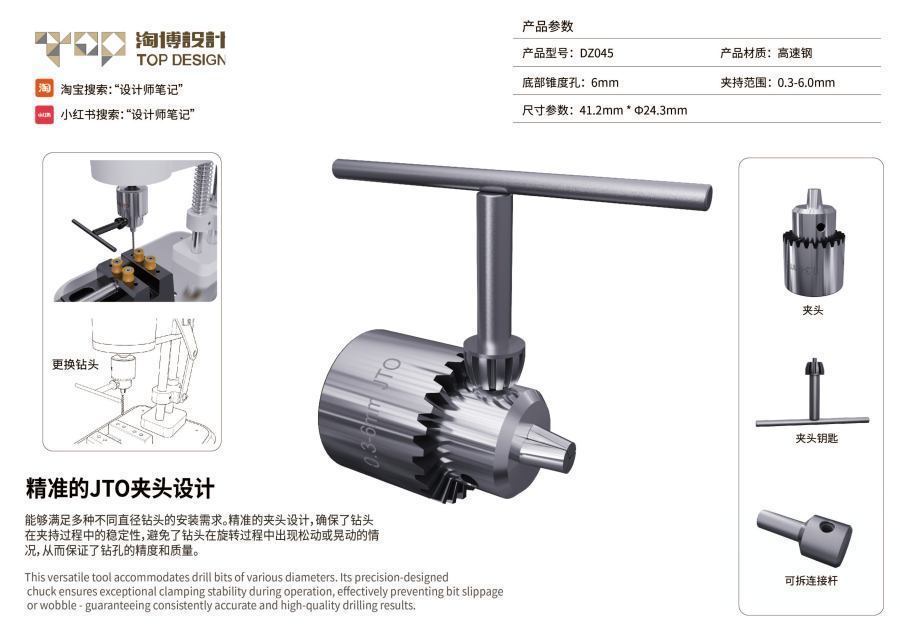

       配备JTO夹头，钻头夹持范围在0.3~6mm之间，能够满足多种不同直径钻头的安装需求。精准的夹头设计，确保了钻头在夹持过程中的稳定性，避免了钻头在旋转过程中出现松动或晃动的情况，从而保证了钻孔的精度和质量。

        Equipped with a JTO chuck, the drill bit holding range is between 0.3~6mm, which can meet the installation requirements of various drill bits with different diameters. The precise chuck design ensures the stability of the drill bit during the holding process, avoiding the drill bit from loosening or shaking during rotation, thereby ensuring the accuracy and quality of the drilling.

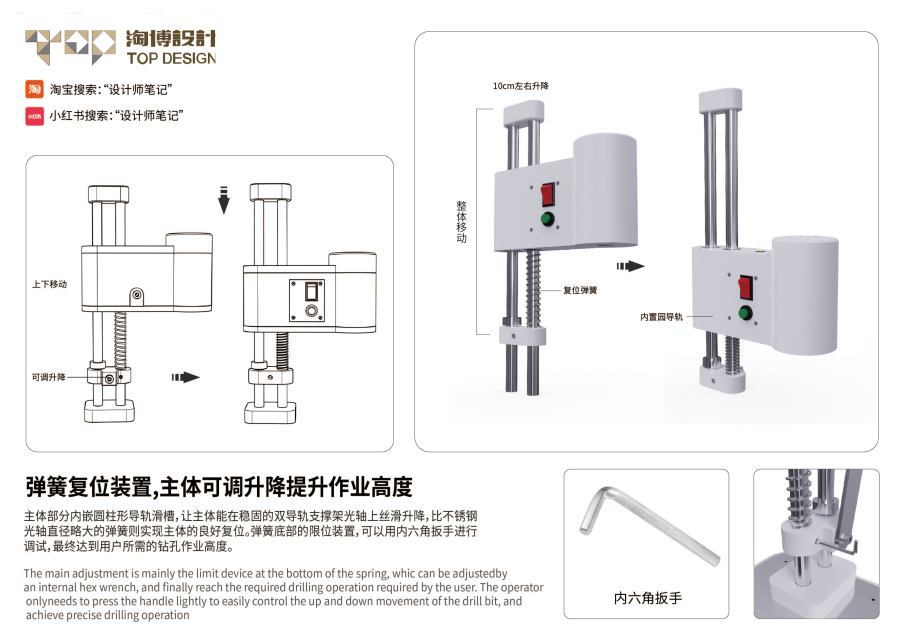

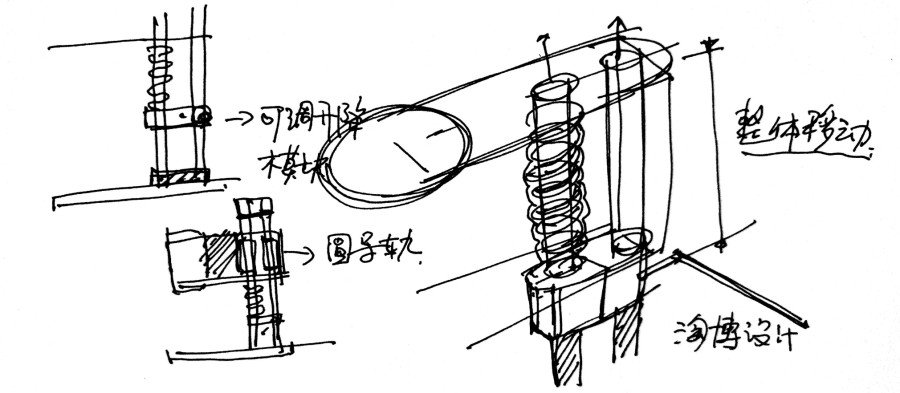

三、主体可调升降，提升作业高度The main body is adjustable in height to increase the working height.

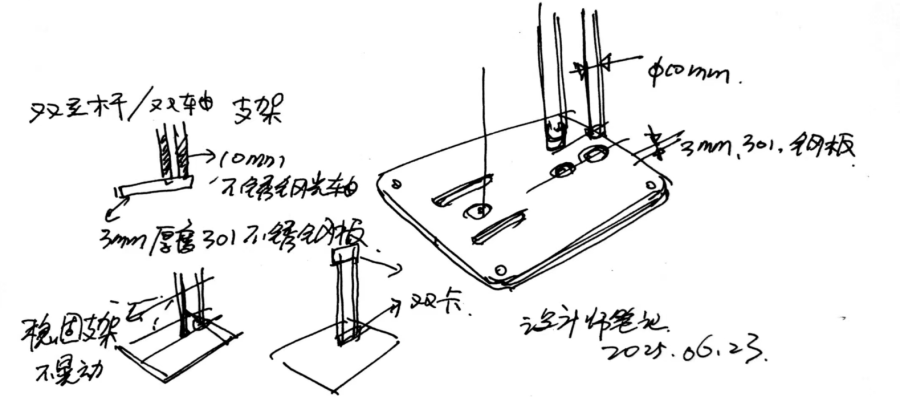

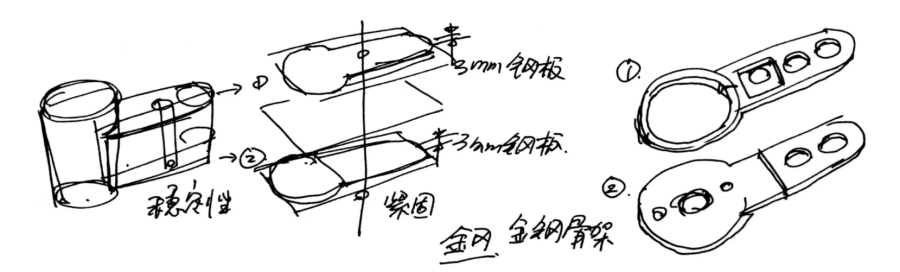

       主体部分内嵌圆柱形导轨滑槽，让主体能在稳固的双导轨支撑架光轴上丝滑升降，比不锈钢光轴直径略大的弹簧则实现主体的良好复位

The main body is equipped with a cylindrical guide rail groove inside, allowing it to smoothly rise and fall on the stable double guide rail support shaft. A spring slightly larger in diameter than the stainless steel shaft ensures the good reset of the main body.

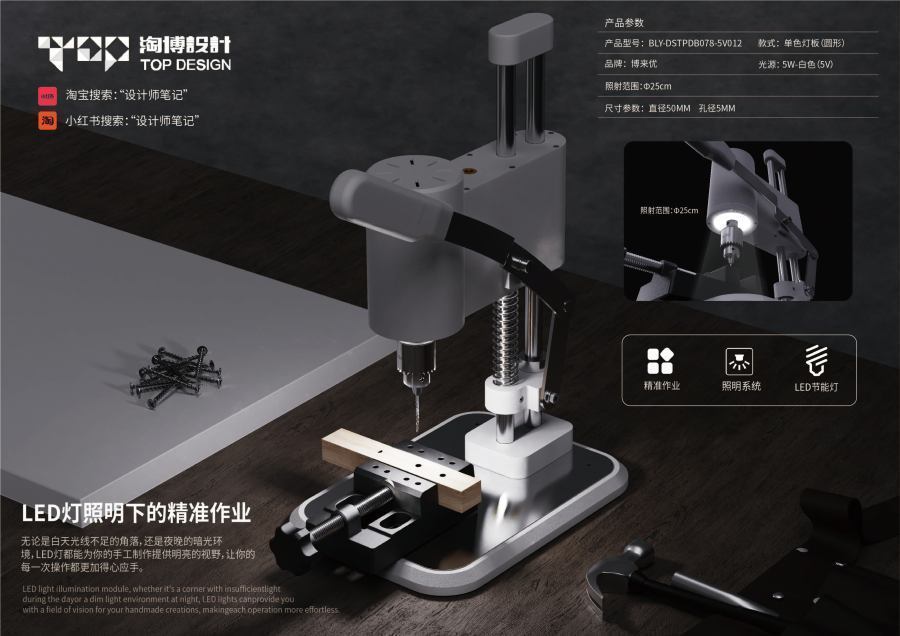

四、LED灯照明，清晰作业LED lighting for clear operation

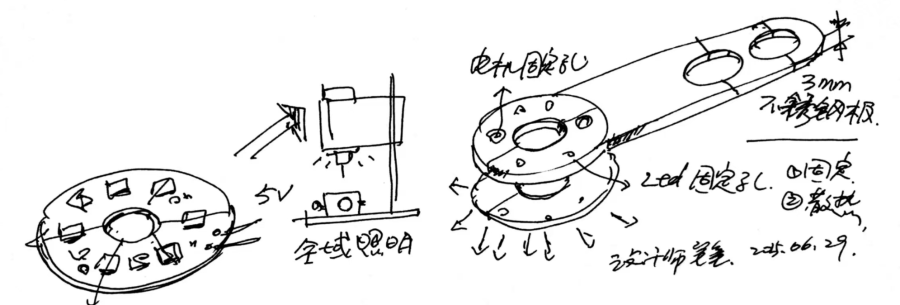

在“RETHINK”台钻的主体模块下方，特别设计了LED灯照明模块。这一创新的贴心设计，使得迷你台钻在全域范围内都能提供清晰明亮的照明效果，让操作者在任何光线条件下都能清晰地看到钻孔区域，从而更加精准地进行作业。

Beneath the main module of the “RETHINK” drill press, an LED lighting module has been specially designed. This innovative and considerate design allows the mini drill press to provide a clear and bright illumination across its entire working range, enabling the operator to see the drilling area clearly under any lighting conditions, thereby allowing for more precise work.

无论是白天光线不足的角落，还是夜晚的暗光环境，LED灯都能为你的手工制作提供明亮的视野，让你的每一次操作都更加得心应手。

        Whether in a dimly lit corner during the day or in low-light conditions at night, the LED light can provide a bright field of vision for your handicraft making, making each of your operations more skillful and convenient.
